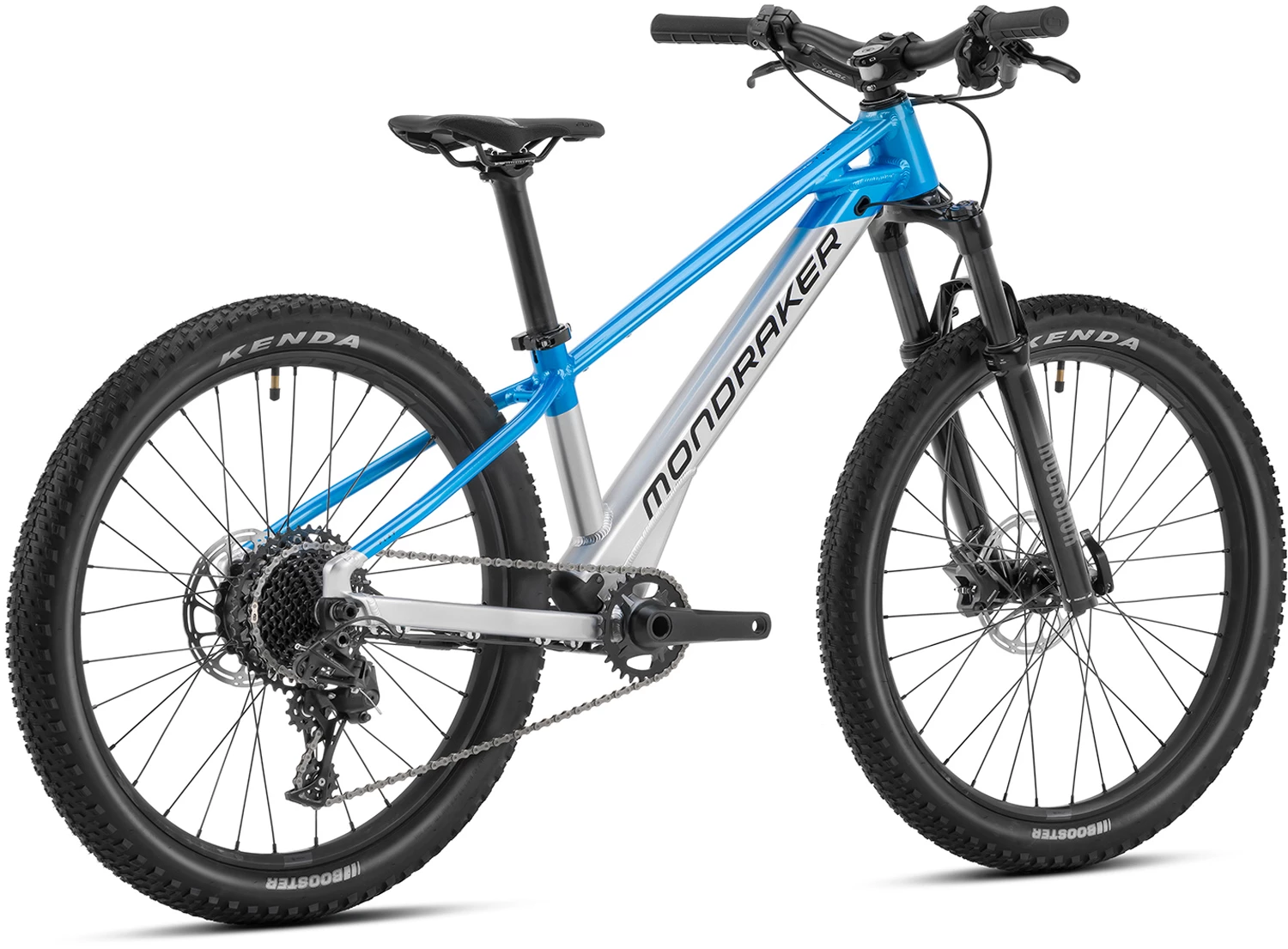

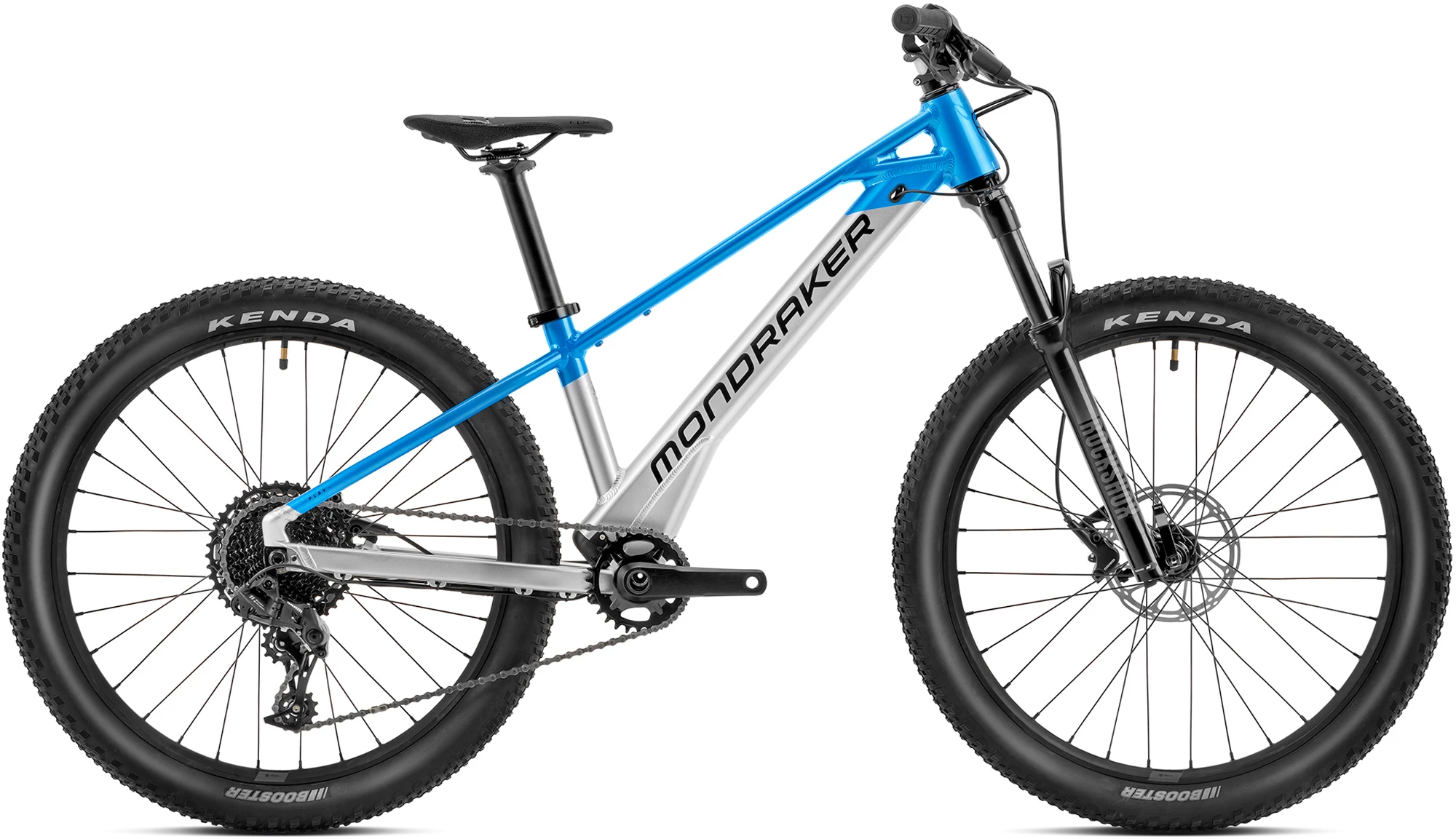

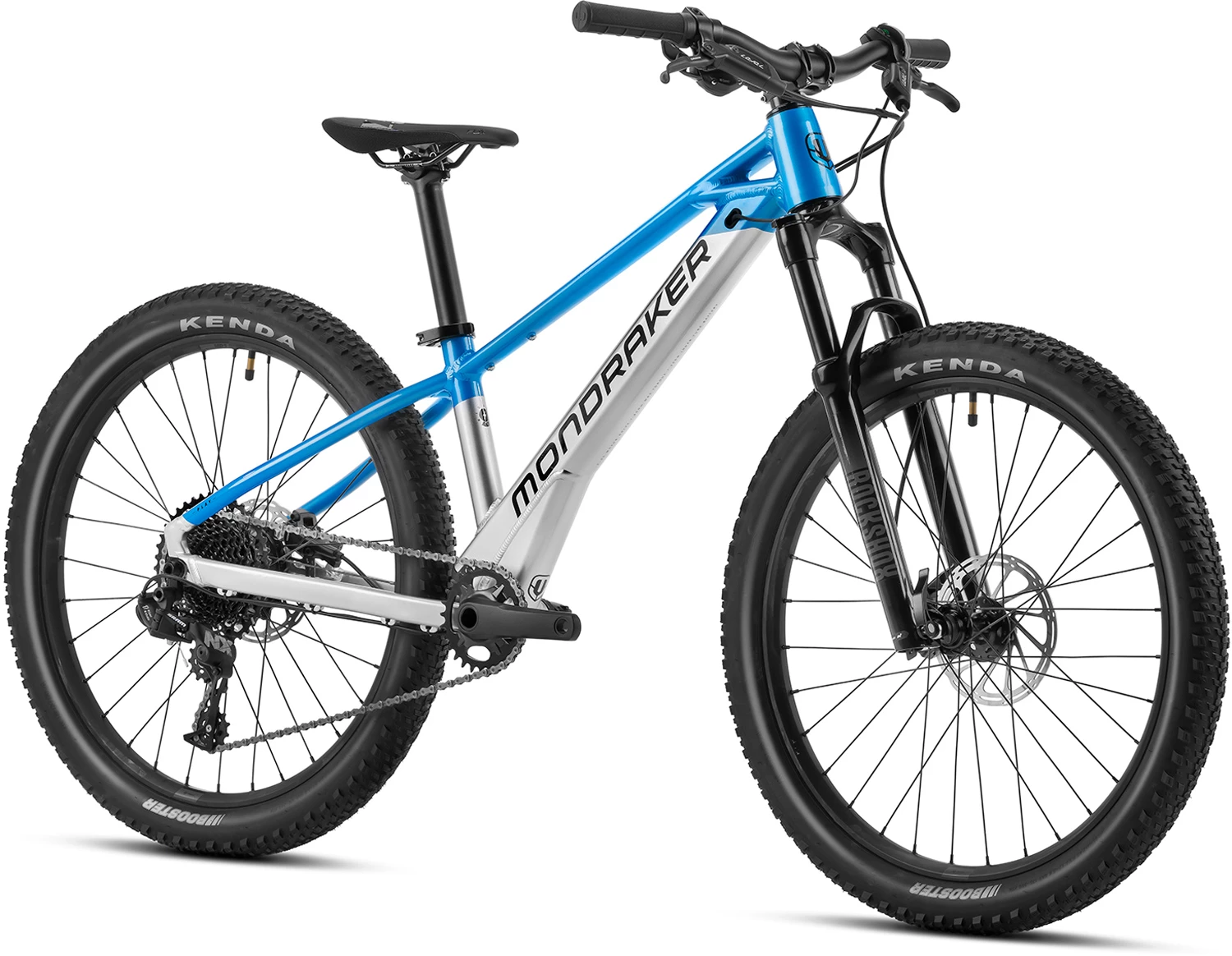

Mondraker PLAY 24

With the PLAY 24 the new generation also comes into the benefit of a genuine Mondraker eMTB. The Mahle e-bike engine is a real powerhouse and lets the youngsters ride on a par with the adults. Thanks to the stylish design, it is immediately recognizable as an offspring of the Spanish high-end brand.

---

Features – Mondraker PLAY 24

Internally placed cables are of course a standard feature of the Play, as are the typical moon raker technologies such as « Stealth Alloy » and the famous Mondraker « Forward Geometry ». This ensures a longer reach, which is created by the extended top tube, and allows a longer wheelbase, which leads to more control and sovereignty. The rider moves further away from the front wheel, so the stem is very short.

Geometry and specifications of the Play 24 have been adapted to the needs of young riders and provide a lot of off-road fun. The 11-speed SRAM NX drivetrain together with the Mahle Ebikemotion engine ensures that even steep ramps can be conquered. Hydraulic SRAM Level disc brakes with 160 mm diameter front and rear provide perfect deceleration. The wide Kenda Booster tires offer optimal grip on the road and on the trail. Hop on, ride on, have fun – because that’s guaranteed with this kids’ e-mountain bike!

---

Mondraker PLAY family

For 2021 Mondraker introduced a new e-kids range featuring Mahle-eBikemotion X35 hub motors. From 20 to 26” hardtail and 24” and 26” full suspension, the new Play and F-Play range are boosted with up to 40Nm maximum torque and 25 km/h max pedal assistance with internal 250Wh battery. With the Mahle e-Bikemotion mobile app and Mondraker kids’ custom software it’s never been so easy to configure the different motor riding parameters to our kid’s liking in a very easy and intuitive way, also featuring offline navigation. All F-Play and Play model batteries are removable but not interchangeable. Maximum torque and speed are also limited for the 20” Play model.

Advantages of Play e-bikes

• Fully integrated eMTB for kids.
• Mahle e-Bikemotion X35 hub motor provides the right performance
• Maintenance free, compact design
• Long lasting 250Wh range for a kid’s bike

---

Technologies

FORWARD GEOMETRY
Mondraker’s Forward Geometry has proven to be the geometry benchmark for high-end performance mountain bikes nowadays and this is one of our proprietary most unique leading technologies to date.

Forward Geometry main advantages are an increased safety and confidence riding steep chutes even at high speeds, more reactive, precise and direct handling, more uphill precision and more stability in technical and rough terrain with better grip and improved control overall. This season we are offering our largest FG models collection.

Based on a geometry with longer reach and longer top tubes, riding position with FG30 mm stem is perfectly balanced for each bike category and application. Extra top tube length increase is compensated with our proprietary FG30 stem on all FG models, on every frame size. Front center length increases thus making the ride more confidence-inspiring, allowing you to ride faster easier and, above all, a more enjoyable riding experience.

STEALTH ALLOY
Stealth Alloy encompasses all processes in the creation of the frame, from the industrial design to the specific production of each of its tubes with the calculation of the most precise details. Each tube and part is carefully designed to carry out a specific function while striving to achieve the lowest possible weight. Stealth technology is evolving every year with optimised shapes and internal updates to deliver the best riding experience in our aluminium frames.

---

Please note that pedals are not included!
