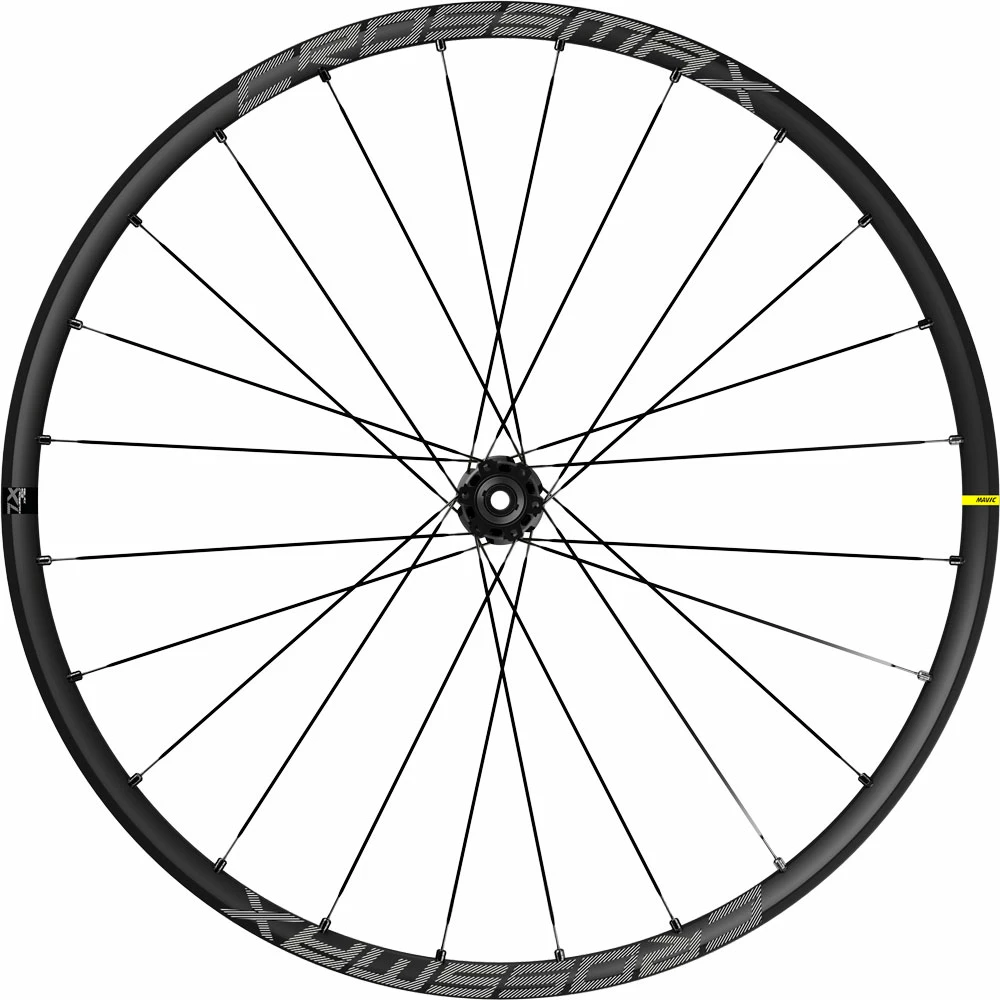

Mavic Crossmax XL 29″ Boost Rear Wheel

Mavics Crossmax XL are aluminum wheels designed for hard enduro use. They are equipped with the Fore technology and have a completely closed « rim bridge », which allows tubeless riding without rim tape. Lighter yet stronger than ever before, Mavic’s Crossmax XL wheels also feature sophisticated bearing technology in the form of Infinity hubs.

---

Features – Mavic Crossmax XL 29″

• Versatile, dynamic trail riding performance
• Wide, strong rim profile with Black Shield treatment protects your rim against impacts and scratches
• Lighter and stiffer Infinity hubs with ultra-reliable ID360 freewheel system for instant acceleration
• More confidence and control on rugged terrain
• 30mm wide rim is optimized for lower tire pressure, giving you a smoother ride with more traction and control
• Triangular rim shape absorbs heavy impacts so you’re free to bomb the descents
• Ride tubeless with the most user-friendly tubeless system
• Fore technology: leaving the upper rim bridge intact boosts the stiffness and durability of the rim, no tape needed
• No tape makes it easy to mount and change tubeless tires
• QRM Auto bearing preload technology
• SUP welding technology

Product features

• Use: Enduro
• Model: Crossmax XL
• Wheel size: 29″
• ETRTO: 622×30
• Rim type: Clincher
• Tubeless: ✔
• Hub: Infinity Hub
• Freehub system: Instant Drive 360
• Bearings: Auto adjust sealed cartridge bearings (QRM Auto)
• Rim inner width: 25mm
• Hub axle system: 12 x 148mm Boost thru axle
• Spoke type: straight pull, flat, double butted
• Spokes: 24 crossed 2, contactless
• Brake type: Disc brake
• Brake system: Disc 6-Bolt
• Recommended tyre sizes: 60 to 76mm (2.35″ to 3.0″)
• Valve hole: Presta / SV Ø 6.5mm
• ASTM Catergory: 4 – Enduro and Trail riding
• Recommended system weight max: 120kg (Rider + Bike + Equipment)

Freehub (choose variant)

• Shimano (HG9-11)
• SRAM XD

Material

• Rim: Maxtal Aluminum / S6000 Aluminum
• Hub: Aluminum
• Freehub: Steel
• Spoke: Steel
• Nipples: Fore integrated Aluminum

Color

• black

Weight (manufacturer information)

• 1030g

---

Scope of delivery

• 1 Mavic Crossmax XL 29″ Rear Wheel
• 1 UST valve and accessories
• 2 Spokes
• 1 Multifunctional wrench
• 1 Fore spoke wrench

---

Technologies

Fore Technology
Mavic’s Fore technology is the latest achievement of the traditional French manufacturer. It’s the result of years of research and combines low weight and improved tubeless assembly with increased rigidity and ease of repair. 10% lighter and stronger than traditional wheel designs, the Fore Technology incorporates spokes that fit directly into a co-molded metallic insert that avoids the need to drill the upper rim bridge. This negates the need for rim tape, makes for easy repairs, and saves an additional 30g per rim.

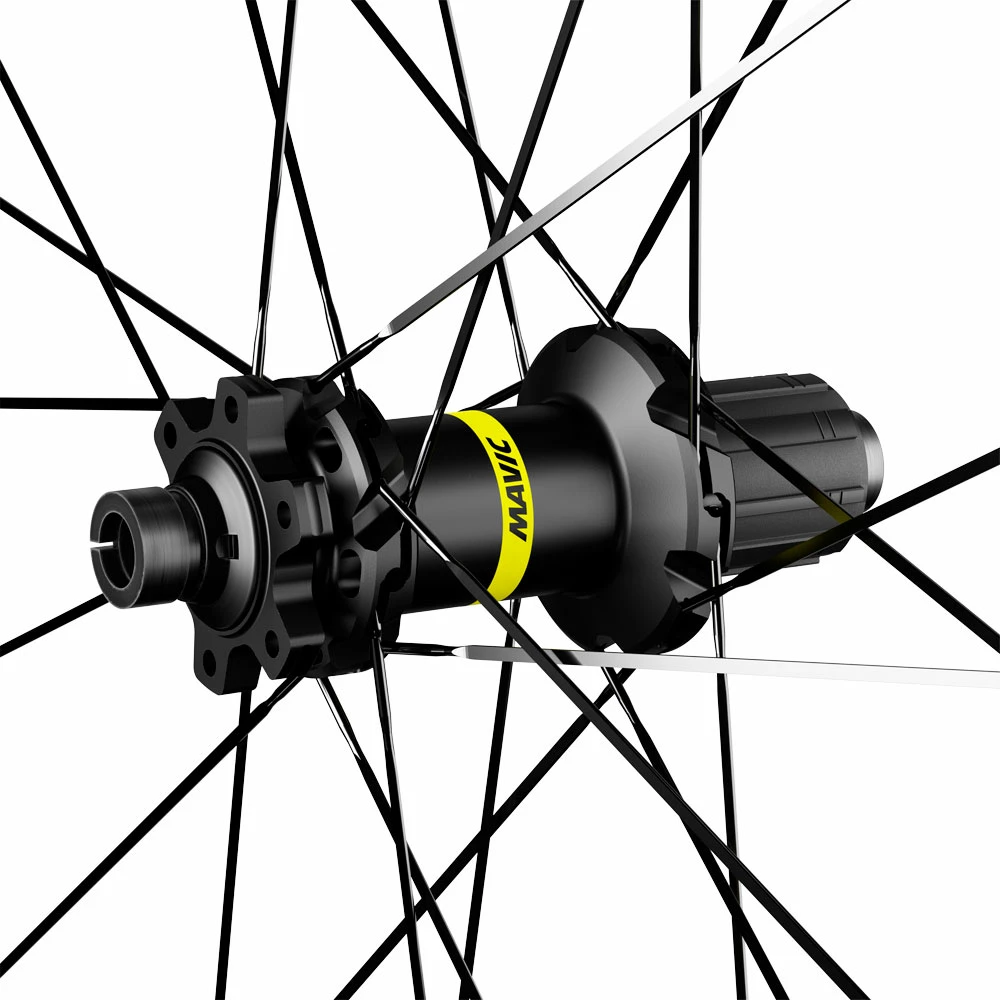

Infinity Hub
Equipped with the all-new Infinity Hub that harnesses a trinity of hallmarks that enhance power transfer, durability, and compatibility. Easily serviceable without the need for specialized tools, the Instant Drive 360 freewheel technology ensures quick engagement along with high rigidity and durability and offers automatic bearing preload adjustment (QRM Auto). Designed for compatibility and ease of use, the Infinity Hub can be converted to all major freewheel drive options and axle dimensions.

UST Tubeless Technology
Traction, control and lightweight. The UST concept improves traction, control and comfort while reducing inertia and flats. Tubeless constructions are lighter, reduce the rolling resistance and provides more comfort.

QRM (Qualité de Roulements Mavic)
Qualité de Roulements Mavic. Mavic only uses high quality sealed cartridge bearings. On QRM wheels, they feature double sealing (2RS or LLU) together with tight C3 internal clearance.
